MMA-6040

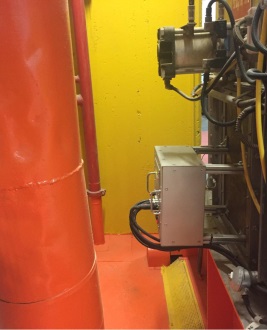

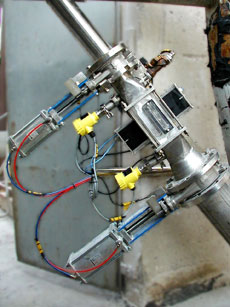

The MMA-6040 is a non-contact online and inline analyzer, which scans the volume of products in pipes or batches in mini-silos and measures its internal moisture levels and mass-flow deviation levels (optional). Based on MALCAM's highly successful series of analyzers, the MMA-6040 provides a solution to a pressing need for fast and highly accurate water content detection in the various stages of production, without any interruption to the process. The MMA-6040 provides better mapping accuracy than any of the traditional inline measurement methods in use today.  Operating under both digital and analog links, MMA-6040 enables instant availability of all analysis results and data throughout the enterprise.

The MMA-6040 is designed with a completely open architecture, enabling the creation of totally integrated system customized to specific plant requirements, and the incorporation of any combination of accessories and services.  Connectivity to plant process control systems is facilitated via RS-232/422 or Ethernet (TCP/IP), analog industry standards, remote control data logging, and other data links. The MMA-6040 offers an optional easy-to-read graphic display, which allow engineers, plant managers and executives to interpret process conditions and make decisions, thereby reducing material costs and improving quality.

Main Features and Benefits:

•    Online and inline analysis of material flow
•    Volumetric measurement
•    No interruption to process
•    No physical contact with material
•    Highly accurate results in real time
•    Automatic storage and analyses of results
•    Minimal operator intervention
•    Cost-effective, fast ROI
•    Interfaces with existing plant information systems
•    Not sensitive to ambient conditions or color of material
•    Easy and long lasting calibration
